Yanhua Mini ACDP Module 3 BMW ISN Module Read & Write BMW DME ISN Code by OBD All Key Lost with License A50B A50D A50E

SKU: TIT-YNH-MDL3

Weight :

0.342 lbs

https://transponderisland.com/web/image/product.template/39302/image_1920?unique=975f1f2

Login to see price

Not Available For Sale


This combination does not exist.


Yanhua
Yanhua

Yanhua, a China-based company specializing in automotive ECU and security system programming, is dedicated to delivering exceptional solutions for your performance and security services needs.


Share :


Product Description

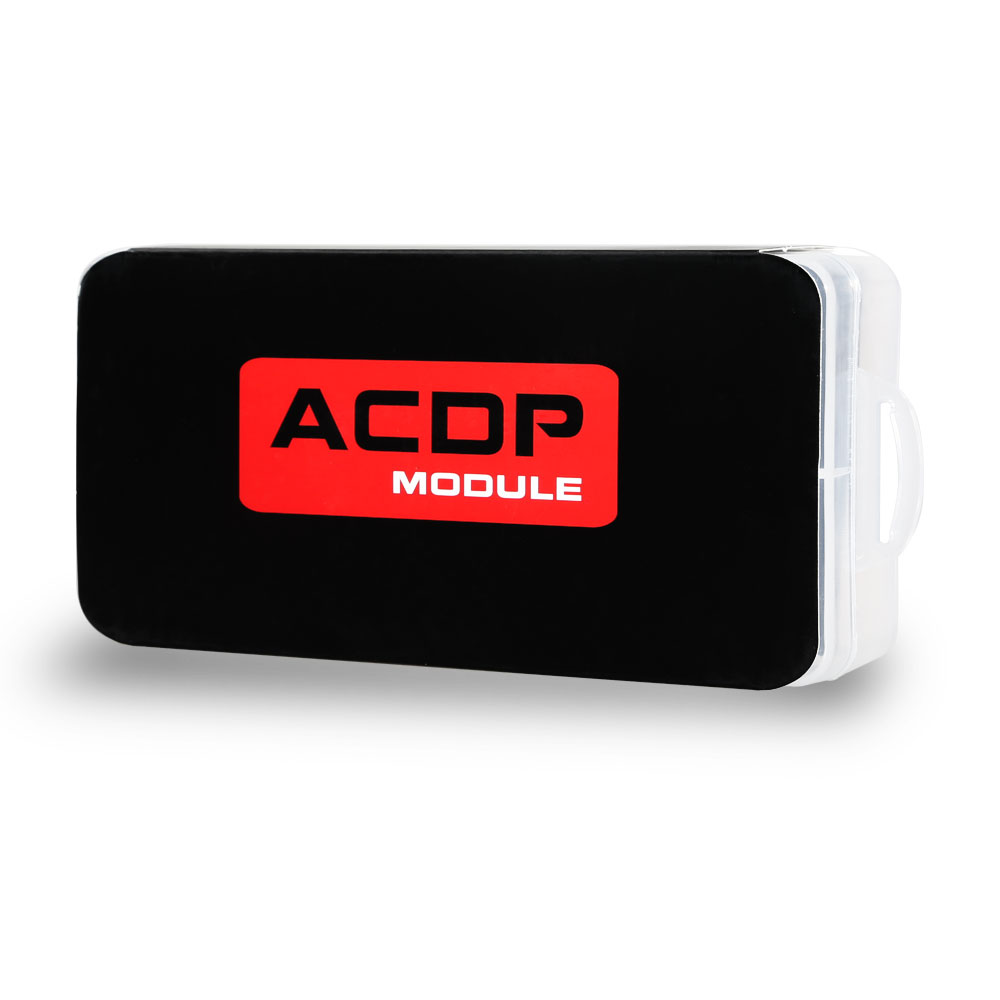

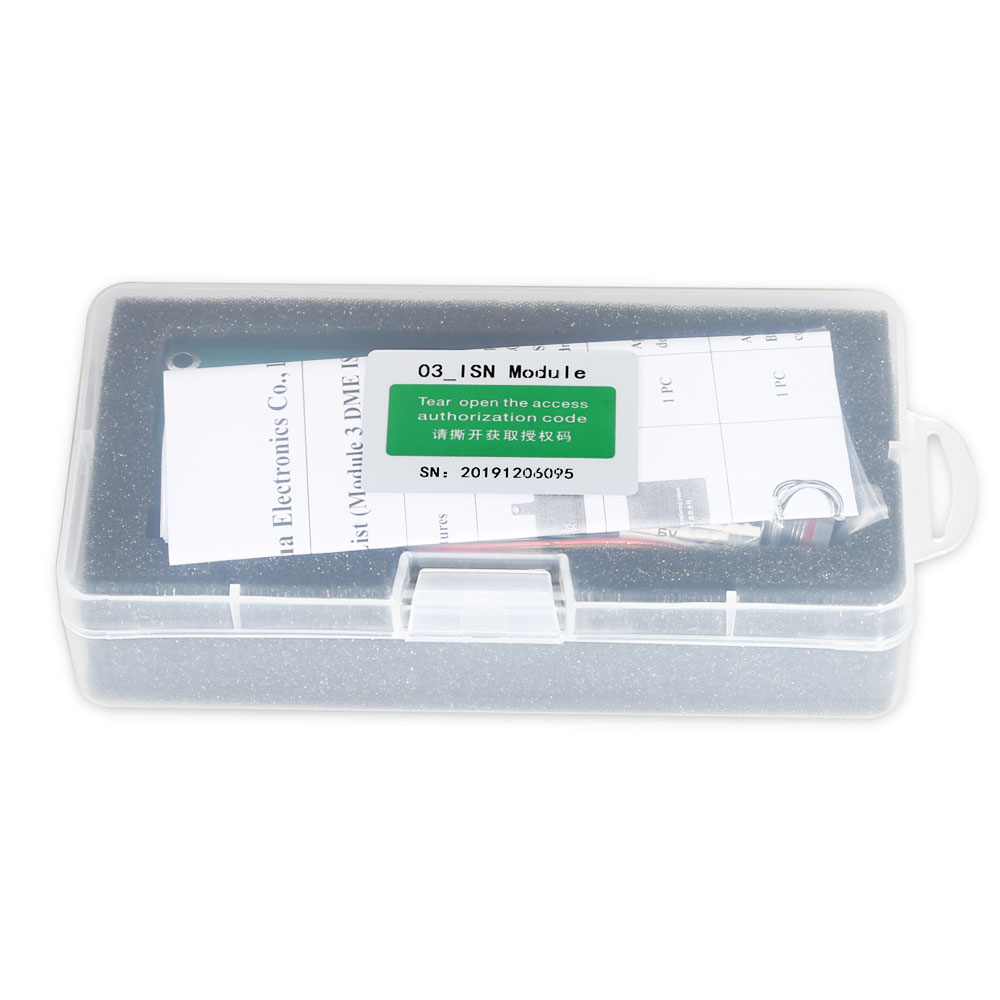

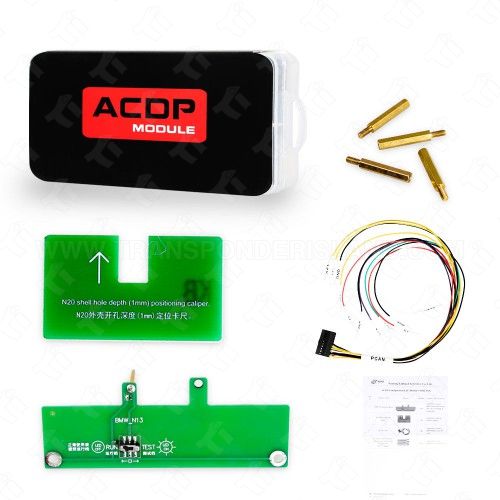

1. Yanhua Mini ACDP Module 3-ISN Module with License A50B A50D A50E
2. Support Reading/writing BMW DME ISN(Necessary when all key lost)
3. Can work with both ACDP-1 and ACDP-2 Master basic version module

Yanhua Mini ACDP Module 3 Read & Write BMW DME ISN Code by OBD

Module Function:

Read the requested ISN code when making BMW all key lost

Features:

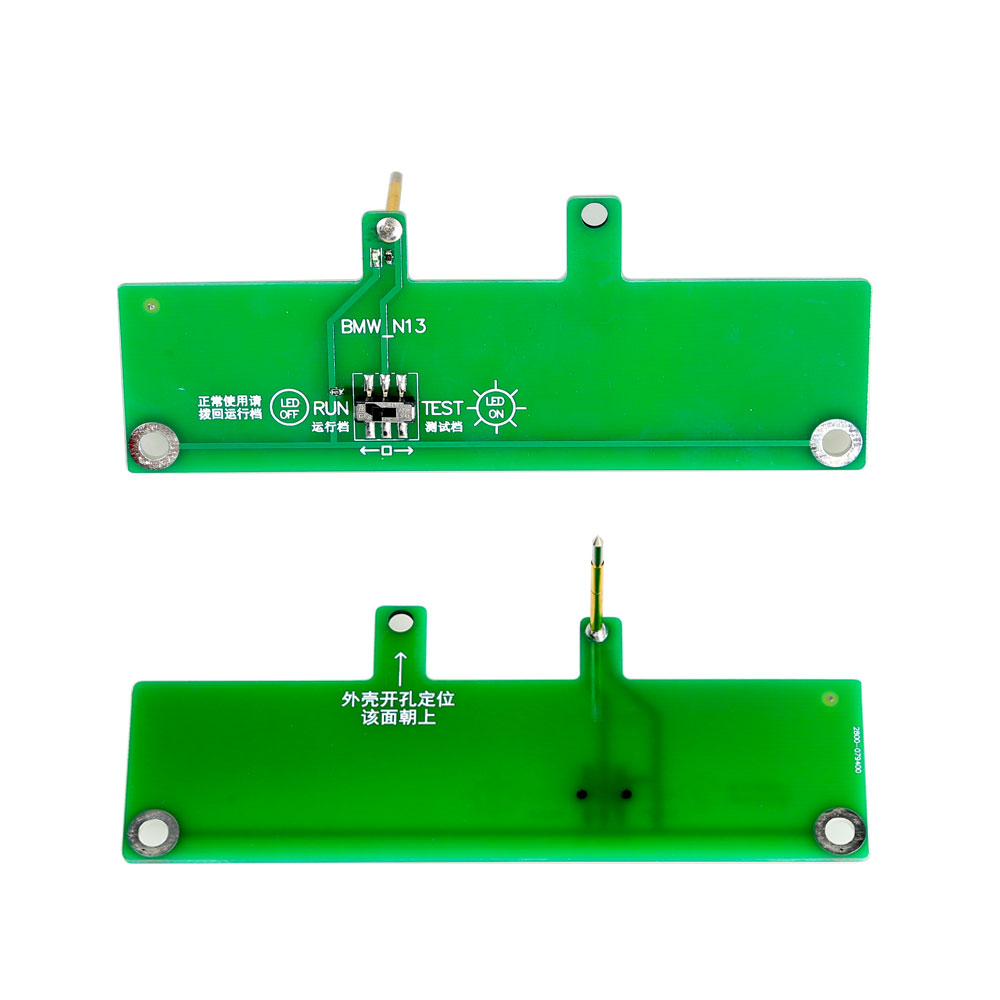

1. Read ISN code of N20/N55/N13 by OBD or without opening the DME shell
2. Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell
3. Read ISN code of other models(B38, etc) by opening the shell
4. Read ISN code of MSV90/B48 by OBD.(Need to buy B48/MSV90 ISN Reading via OBD Authorization A51B)
5. Read & write ISN code on Bench. Support full versions of the N13/N20/N63/S63/N55/B38 etc.(Need to buy Bench interface board)
6. ECU Clone. Support BMW N13/N20/N63/S63/N55/B38 Dflash and Pflash reading/writing. (Need to buy Bench interface board and A51C ECU Clone authorization)
7. For BMW MSV80 MSD8X MSV90 DME Read/Write ISN and Clone, please buy ACDP Module 27

Coverage List:

Read and Write ISN Code:
N20(MEVD1724, MEVD172P, MEVD1729), N13(MEVD1725, ), N55(MEVD172, MEVD1726, MEVD172G, MEVD172S, MEVD17), MSV80, MSD81, MS085,
MSD85HY, MSD87, MSV90, MEVD1728(s63), MEV1722, MED172, MEVD1727, DDE701, DC17C50, BMSX...

ISN Read by OBD list:
N20/N13/N55 DME
MSV90/B48
MSV80/MSV801/MSV85 DME
MSD80/MSD802 DME
MSD81/MSD812 DME
MSD851(supports E-series only currently) DME
BMW MEV1722 Engine OBD ISN Function
Read N62_TUE2 DME ISN(Supports E Chassis)
Read MEV9N46 DME ISN(Support E Chassis)
Read MEV9N46L DME ISN(Support E Chassis)

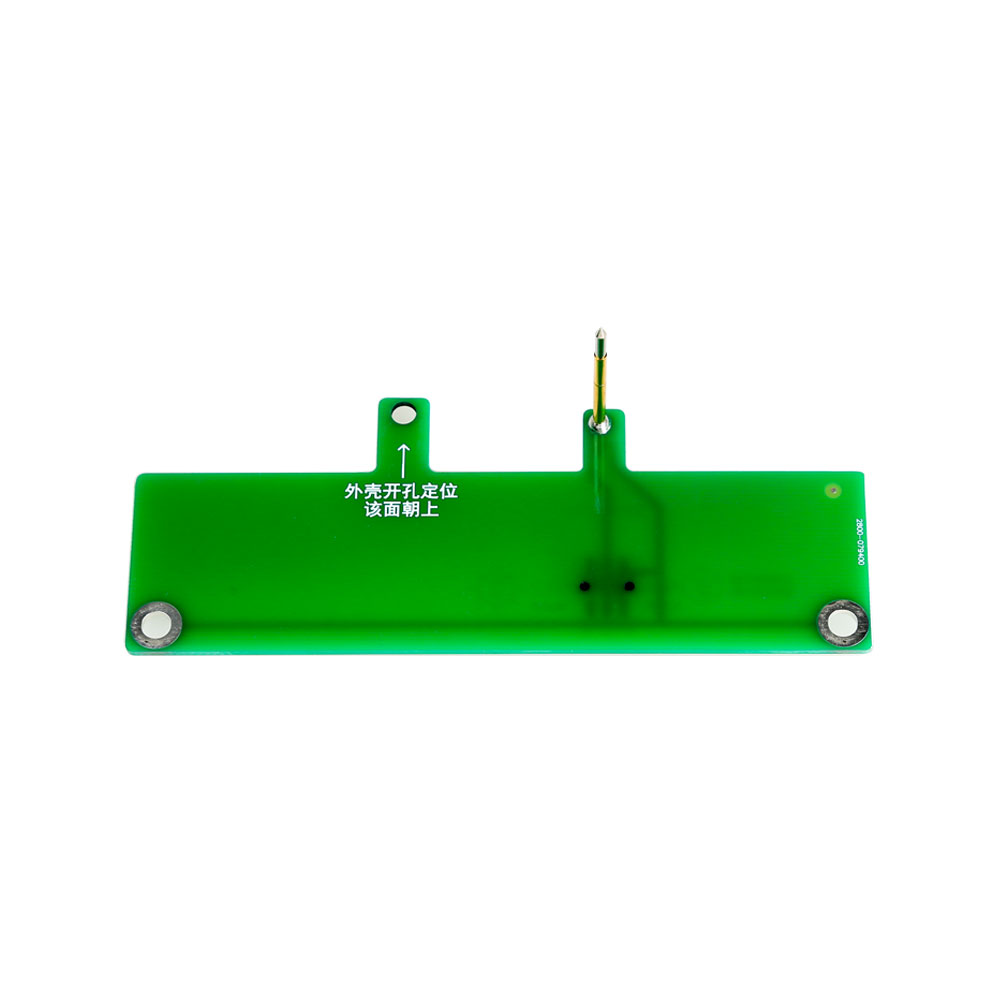

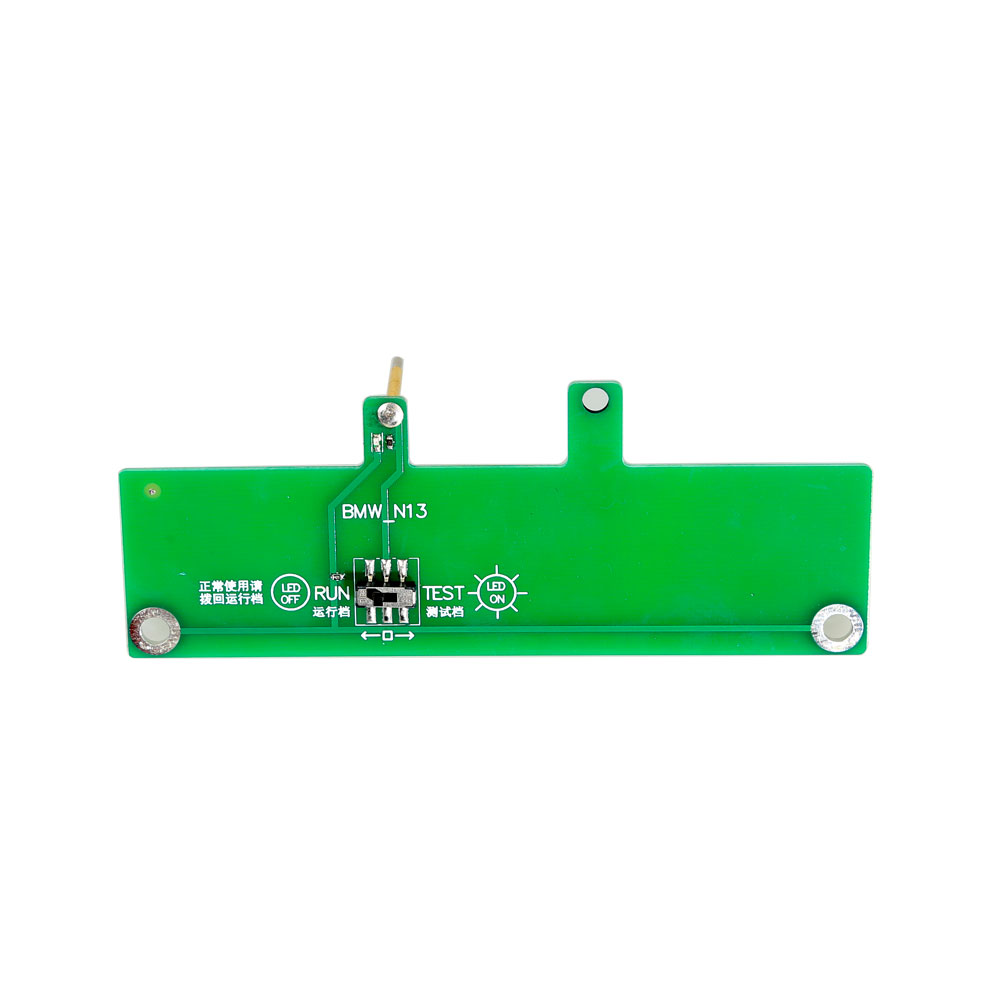

Read & write ISN code on Bench:(Need to buy Bench Interface Board)


Interface board typeExxFxxGxxRxxIxx
N20 Bench interface boardN20(MEVD172P)N13(MEVD1725)
N20(MEVD1724)N20(MEVD172P)
N20(MEVD1729)N20(MEVD1724)
 N20(MEVD1729)
 N26(MEVD1729)
 N63(MEVD172H)
 N63(MEVD1728)
 S63(MEVD172H)
 S63(MEVD1728)
N55 Bench interface boardN55(MEVD172)N55(MEVD172)
 N55(MEVD172G)
 N55(MEVD1726)
 S55(MEVD172G)
B38 Bench interface board B38(MEVD172K) B38(MEVD172K)B38(MEVD172K)
 B38(MEVD1723) B38(MEVD1723)B38(MEVD1723)
 B48(MEVD172K) B48(MEVD172K)
 B48(MEVD1723) B48(MEVD1723)
   XM71(MEVD172K)
   XM71(MEVD1723)
B48/B58 Bench Interface Board B37(MD1CS001)B46(MG1CS201)B37(MD1CS001)
 B38(MD1CS001)B47(MD1CP002)B48(MG1CS201)
 B48(MG1CS003)B47(MD1CS001)
 B48(MG1CS201)B48(MG1CS003)
 B58(MG1CS003)B48(MG1CS201)
  B57(MD1CP002)
  B58(MG1CS003)
  B58(MG1CS201)
  N63(MG1CS201)
  N74(MG1CS003)
  N74(MG1CS201)
BMW-DME-ADAPTER X1N47(ECD17C50)B37(ECD17C50) B37(ECD17C50)
 B47(EDC17C50) B47(ECD17C50)
 B47(EDC17CP49) N47(EDC17C50)
 N47(ECD17C50)
 N47(ECD17C76)
 N57(ECD17C76)
 N57(ECD17C56)
 N57(ECD17CP49)
BMW-DME-ADAPTER X2N47(ECD17C41)N47(ECD17C41) N47(ECD17C41)
N57(ECD17CP45)N47(ECD17CP45)
 N57(ECD17CP45)
BMW-DME-ADAPTER X3    BMSX(ME172)
BMW-DME-ADAPTER X4   N12(MEV172)
   N14(MED172)
BMW-DME-ADAPTER X5N47(ECD17C06)
N47(ECD17CP02)
BMW-DME-ADAPTER X7N57(ECD17CP09)N57(ECD17CP09)
BMW-DME-ADAPTER X8N45(ME1721)
N46(MEV1721)


ISN Read(need to remove DME)
E Series
DDE70_EDC17C06
DDE701_EDC17C50
DDE71_EDC17CP02
DDE721_EDC17C41
DDE73_EDC17CP09
DDE731_EDC17CP45
MEVD17(N55)
MEVD1724(N20)
MEVD1726(N55)
MEVD1729(N20)
MSV80
MSD80
MSD81
MSD85

F Series
DDE701A
DDE701P
DDE721B
DDE721P
DDE73A
DDE731A
DDE741A
DDE751A
MEVD172(N55)
MEVD1726(N55)
MEVD1724(N20)
MEVD1725(N13)
MEVD172G(N55)
MEVD172S(N55)
MEVD172P(N20)
MEVD1728(S63)
MEVD1729(N20)
MSD85
MSD85HY
MSD87
MSV90

R series
MEV1722
MED172
DDE701_EDC17C50
MEVD1727

M series
BMSX



Specifications


Brand Yanhua
Product Type Key Programmer
Make Model Year
BMW 3 Series 2006 - 2016
BMW 5 Series 2005 - 2016
BMW 7 Series 2004 - 2016
