Yanhua ACDP BMW B48/B58 Interface Board for B48/B58 ISN Reading and Clone via Bench Mode
SKU: TIT-YNH-B48
In Stock
Out of stock
Yanhua
Yanhua, a China-based company specializing in automotive ECU and security system programming, is dedicated to delivering exceptional solutions for your performance and security services needs.
Descriptions
Product Description
B48/B58 Bench Interface Board
Read ISN need work with module 3 license
If you need clone function, you need pay for BMW ECU Clone license
Feature:
1. Support all F/G chassis versions and all B48/B58 DME which chip module is SPC5777/TC298TP
2. No programming is required and the ISN is read in seconds

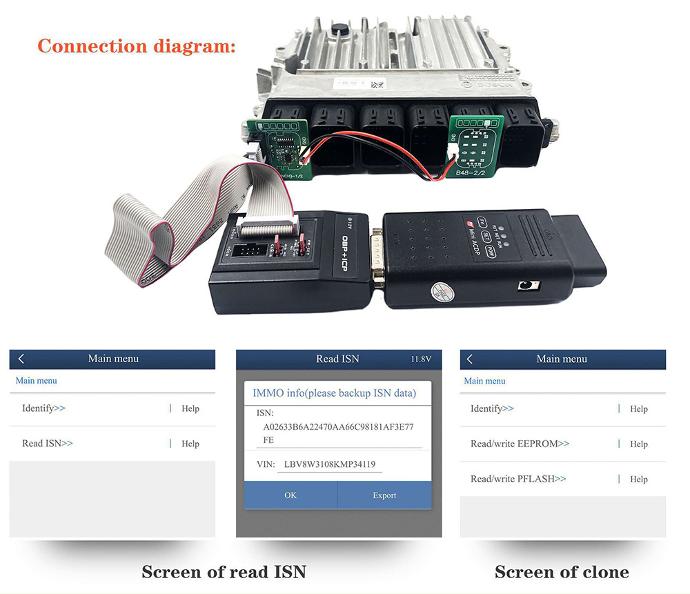

3. The special interface board connection method replaces the traditional plugging wire method, simple and efficient, safe and reliable
Advantage:
1: No need to open DME shell, no need to drill hole on DME, no need to plug wire.
2: The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.
| Interface board type | Exx | Fxx | Gxx | Rxx | Ixx |
| B48/B58 Bench Interface Board | B37(MD1CS001) | B46(MG1CS201) | B37(MD1CS001) | ||
| B38(MD1CS001) | B47(MD1CP002) | B48(MG1CS201) | |||
| B48(MG1CS003) | B47(MD1CS001) | ||||
| B48(MG1CS201) | B48(MG1CS003) | ||||
| B58(MG1CS003) | B48(MG1CS201) | ||||
| B57(MD1CP002) | |||||
| B58(MG1CS003) | |||||
| B58(MG1CS201) | |||||
| N63(MG1CS201) | |||||
| N74(MG1CS003) | |||||
| N74(MG1CS201) |
Specifications
| General info | |
|---|---|
| Brand | Yanhua |
| Product Type | Key Programmer |
Compatibility
| Make | Model | Year |
|---|---|---|
| BMW | 1 Series | 2003 - 2013 |
| BMW | 3 Series | 2004 - 2012 |
| BMW | 5 Series | 2001 - 2009 |
| BMW | 6 Series | 2002 - 2010 |
| BMW | X1 | 2008 - 2015 |
| BMW | X5 | 2006 - 2013 |
| BMW | X6 | 2007 - 2014 |
| BMW | Z4 | 2008 - 2016 |
