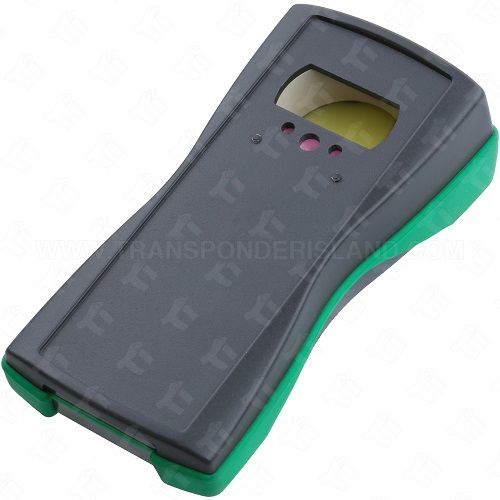

Tango Professional Transponder Reading / Writing Device

Several years ago we have distinct that we need new type of hardware that will allow us to pursue functions, which are either impossible or will be very difficult to reach with our current lineup of programmers. After many iterations. we are finally content with the hardware and the potential it gives us, so it is high time to start releasing information about it.

Scorpio-LK's Barracuda programmer is a new platform which is intended to complement Tango programmer in our pursuit to release solid solutions for locksmiths and users working in the sphere of automotive repairs and vehicles maintenance.

Barracuda is long term project, in this regard similar to Tango. Now with bulk of the work for hardware and core of the software is finished we will be able to focus solely on adding new features to both Tango and Barracuda.

Barracuda base version:

• Barracuda base hardware
• Barracuda base software
• Barracuda database HITAG reset module 1
• Adapter PCF (in-circuit & expansion)
• Barracuda cable PCF 1 (in-circuit,2xCrocodile clips, 2xSoldering tips)
• Barracuda cable PCF 2 (in-circuit, 2xCrocodile clips & 2xProbe needles)
• Adapter PCF 7941 (for soldering)
• Adapter PCF 7945AC (for soldering)
• Adapter PCF 7952 (for soldering)
• Adapter PCF 7953/45 (for soldering)
• Adapter PCF 7953 38pin (for soldering)
• Adapter PCF 7961 (for soldering)

System requirements:

• Barracuda programmer
• Windows XP/7/8/10 PC/Laptop
• External power supply adapter 9-24V, AC to DC, 5.5x2.1mm center positive plug (not included in base version)
• USB 2.0/3.0

Universal EEPROM & MCU Programmer:

Orange5 is a professional programming device for microcontrollers and memory. Unique feature of the current series programmers is built-in macrolanguage for writing down protocols, which gives fast and easy potential to add new types of microschemes, precisely meeting manufacturers' requirements to read/write algorithms.

Technical Information:

• USB power supply (USB2.0/3.0).
• Control of contacts in the sockets
• Universal easy to plug panel ZIF16 for EEPROM
• Protection against overcurrent
• Two expansions sockets compatible with Orange4 and Omega MTRK
• Overload voltage protection
• Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
• High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
• Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ),
  programming voltage (2.0...21.0V), additional static 10V for microcontrollers.
• Capability of functional emulation of class CDC USB devices.
• Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment.
• Built-in 32-bit virtual machine
• Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter).
• Supported Operation Systems : Windows XP/7 32bit , Windows 7/8/8.1/10 64bit
