OBDSTAR  G3 Full Version Support Cluster Calibration, ECU Flasher, Airbag Reset.

Notice:
OBDSTAR X300 Classic G3 Full Version has activated ECU flasher(Clone) + Car/Motorcycle cluster recalibration + Airbag reset

Hardware Advantages:1. Built in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.Product Features:

Software Functions:

Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.8. With Paid software activated for Cluster Calibration, ECU Flasher, Airbag Reset,  and the other functions are available. ( After you registered the device, please send us device serial number )

Function module list

 IMMO

1: CAR IMMO
2: HD IMMO
3: E-CAR IMMO
4: MOTO IMMO

5: MARINE IMMO
2.1 Remote Test
3.1 ECU Advanced
4.1 Make Key
4.2 R/W Transponder
4.3 Unlock Smart Key
5.1 EEPROM/MCU
5.2 Renew Key

ECU Flasher

1: CAR ECM
2 :CAR TCM
3: CAR BODY
1: MOTO ECM

 Crash Reset /Airbag Reset

1: Battery Reset (MVBM)
1.2: Airbag Reset
1.3: SAS Reset

Function Display

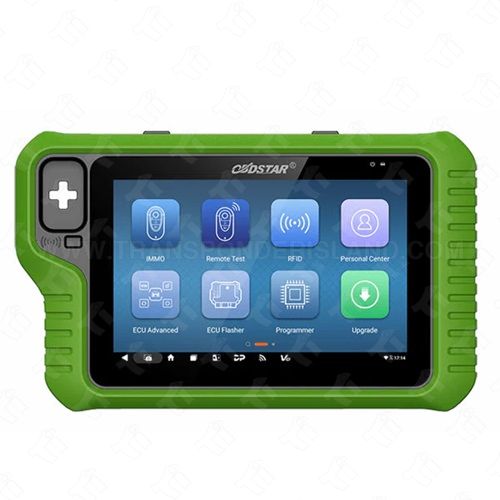

1) Main Page

2) IMMO

3) Remote Test

4) RFID

5) ECU Advanced

6) ECU Flasher

Package Includes:

• 1pc x M001 main cable
• 1pc x charger

• 1pc x MP001 all-in-one programmer

• 1pc x W004 read/write soldering wire

• 1pc x W005 read/write soldering wire

• 1pc x W006 clock frequency wire

• 1pc x C4-01 multi-function data read/write board

• 1pc x BENCH-A V3 for ECM and TCM cloning functions

• 1pc x P004 adapter

• 1pc x BENCH-B V2 ECU Cloning BENCH harness
