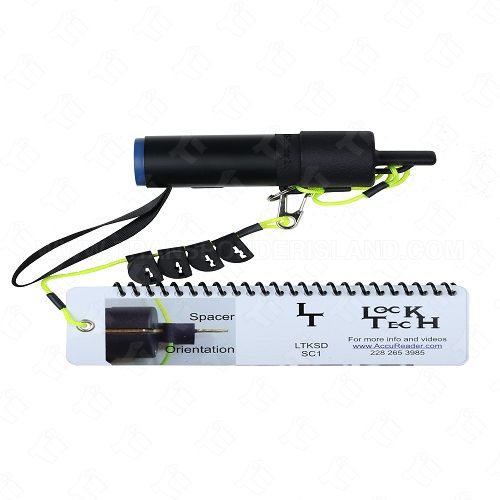

LockTech 2.0 Kwikset Smart Key Decoder - SC1

SKU: TIT-ACR-LTKSD2-SC1

Weight :

0.434 lbs

https://transponderisland.com/web/image/product.template/37102/image_1920?unique=b444b8c

Login to see price

Not Available For Sale


This combination does not exist.


Accu Reader
Accu Reader

Accu Reader - Unlock & decode auto/motorcycle locks with ease. Quality tools & ignition removal tools.


Share :

Instructions


The lock can be read from 1 to 5 or 5 to 1. The following directions are for starting with 5.


1. Carefully insert the LTKSD2 with NO spacers into a Kwikset Smartkey lock fully until it stops. The #5 space wafer should now be displayed on the screen. Using the provided "Wafer Depth Chart", identify the image on the chart that is the same as the image being displayed on the screen for space #5.


2. Use the Light Dimmer Button (next to the power button) on the LTKSD to intensify or dim the light as needed.


3. Write down the correct depth for position #5. Alternatively, you can click the "Camera" icon to take a picture of each position or click the "Video" icon and slowly withdraw the key out of the lock to record all 5 positions.


4. After the #5 space is recorded, gently remove the LTKSD2 from the lock. Gently slide the #4 space (for the correct orientation see the diagram on the depth gauge chart) over the key blade until it stops at the shoulder of the LTKSD2 key.


IMPORTANT: DO NOT FORCE THE SPACERS ONTO THE LTKSD2 KEY.

The correct orientation is if the LTKSD2 key blade is pointing away from you, the spacer # on the spacers should be facing the user on the right side of the key blade when the LTKSD2 is being held horizontally with the tether cord going through the spacer as shown in the diagram on the Depth Chart.


5. Again, using the provided "Wafer Depth Chart" identify the image on the chart that is the same as the image being displayed on the screen for space #4. Record the depth for space #4.


6. Using the same method, continue to record the depths for spaces #3, #2, and #1.


7. Cut the appropriate key blank to the recorded depths to operate the lock.


**For Installation/Troubleshooting videos please visit www.AccuReader.com/videos.html**

Specifications


Brand Accu Reader
Product Type Pick & Decoder
OE Part # LTKSD2-SC1
Keyway Type STANDARD
